AURICULAR RECONSTRUCTION
INVOLVING LOW HAIRLINE

Auricular reconstruction for low hairline cases was and is a challenge to many reconstructive plastic surgeons involved in auricular reconstruction. There have been many postoperative complications such as unwanted hair growth from the reconstructed auricle, and reconstruction of the auricle away from the hairline, thus resulting in a low set auricle and/or an anteriorly located auricle and much more. With the use of TPF and UDSTS during the first stage operation, the problems created by low hairline have been resolved, and the surgical results have been consistent and more than satisfactory. In the second stage operation, auricular projection is performed accordingly, with the exception that the deep temporal fascia [DTF] is elevated and utilized instead of the TPF, to cover the helical region and the posterior aspect of the reconstructed auricle, the grafted costal cartilage block and the temporal and mastoid surfaces, followed by UDSTS cover.

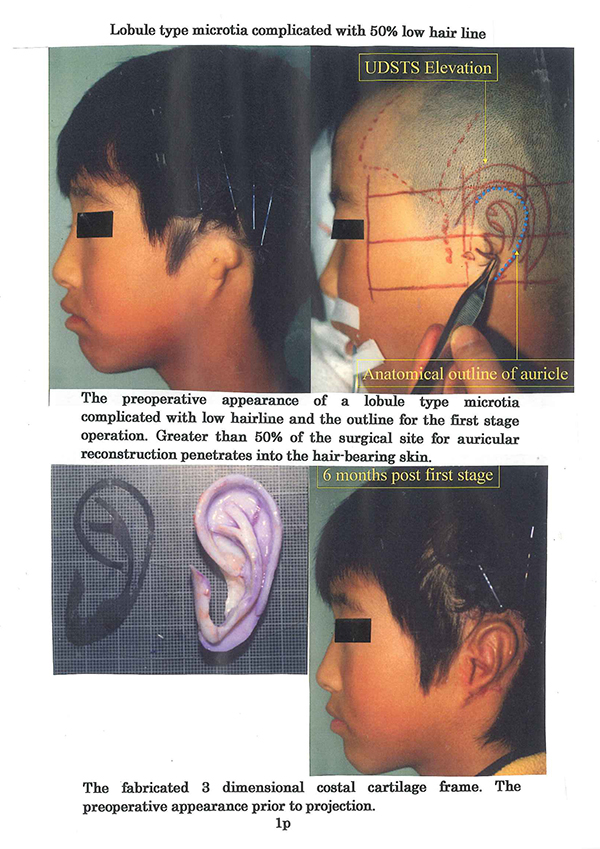

Case 1: Left Lobule Type Microtia complicated with Severe (50%) Low Hairline

Preoperative appearance

Preoperative appearance

Preoperative appearance

Preoperative appearance

Preoperative appearance

Intra-operative appearance (50% Low hairline)

Preoperative appearance

Intra-operative appearance (50% Low hairline)

Intra-operative appearance (50% Low hairline)

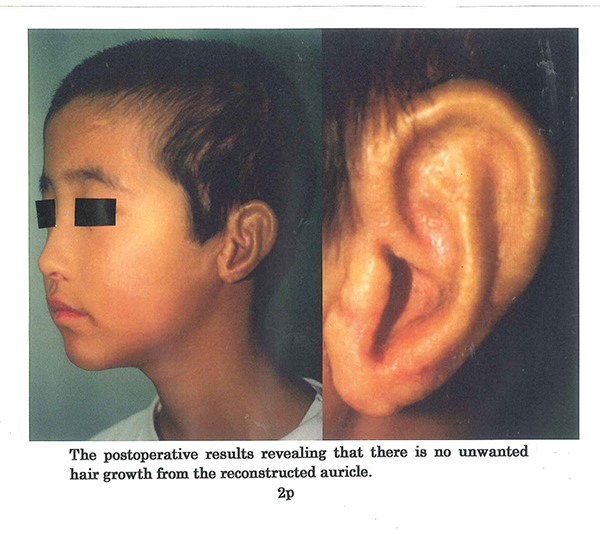

2nd stage post-operative appearance

Intra-operative appearance (50% Low hairline)

2nd stage post-operative appearance

First stage operation-The fabrication of the 3 dimensional costal cartilage frame [3-D frame]

1st stage

Diagram 1: The costal cartilages harvested for the fabrication of the 3-D frame are the sixth, seventh, eights, and the ninth costal cartilages. Diagram 2: Harvested 4 costal cartilages. The tragus unit, the base frame units, the crus helices-helical rim unit and the superior and inferior crus antihelix unit are fabricated from the costal cartilages. The units for the fabrication of the base frame; these units are fabricated from the sixth and seventh costal cartilages with 38 gauge stainless steel double-armed wire sutures. Diagram 3: The head of the proximal region of the crus helicis is fixed to the posterior surface of the base frame and the notch is aligned to the base flame to reinforce the strength of the 3-D frame. Diagram 4: Wire fixations are placed 3 mm intervals. Note that the loop portion of the wire sutures is embedded into the cartilage framework to avoid the postoperative complication of wire suture protrusion. Diagram 5: The fixation of the superior and inferior crus-antihelix unit, commencing from the superior crus, inferior crus, to the antihelix. Diagram 6: The appearance after the fixation of the tragus unit. Diagram 7: The appearance after the fixation of the conchal vault unit and completely fabricated 3-D frame.

Auricular reconstruction complicated with low hairline
The first-stage operation

1st stage

The surgical procedure of an auricular reconstruction further complicated with low hairline is illustrated in Diagrams 1 through 14. Diagram 1: The preoperative appearance of a low hairline case. Diagram 2: The auricle to be reconstructed penetrates into the hair-bearing skin. Diagram 3 and 4: The surgical outlines for the first stage auricular reconstruction with the course of the superficial temporal artery [STA] and its branches mapped out. Diagram 5: The outline for the lines of incision. Diagram 6, 7, 8, 9 and 10: After skin incision, the elevation of the temporoparietal fascia flap [TPF] and the one-piece combined full-thickness skin [FTS] and ultra-delicate split thickness scalp skin [UDSTS] are performed as illustrated. Diagram 11: At the site for auricular reconstruction, the layer containing the follicular buds is excised to avoid postoperative hair growth. Diagram 12: The fabricated 3-dimensional costal cartilage framework [3-D frame] is placed in its proper anatomical location as illustrated. Diagram 13: The exposed 3-D frame is covered with the TPF. Diagram 14: The TPF covered 3-D frame is then covered with the elevated one-piece FTS-UDSTS cover.

The second stage operation for microtia further complicated with low hairline - Auricular projection

2st stage

Schematic illustration of the second stage operation - auricular projection for microtia complicated with low hairline. Diagram 1: The outline for the second stage operation, auricular projection. The spindle shape outline is for the harvesting of the ultra-delicate split thickness scalp skin [UDSTS] and the outline along the helical rim is for the release of the reconstructed auricle. The zigzag outline [same incision line in the first stage operation] is the incision outline for the elevation of the deep temporal fascia [DTF]. Diagram 2 and 5: the harvested UDSTS with the area where it was harvested, and the preparation for the elevation for the DTF. Diagram 3 and 4: The method of harvesting the UDSTS with a scalpel [number 15 blades]. Diagram 6: The elevated DTF. Diagram 7: For the release of the reconstructed auricle, the area immediately adjacent to the helical rim which penetrates into the hair-bearing skin is elevated in the same manner as the UDSTS to the distance of 4 mm from the margin of the reconstructed auricle. Diagram 8: The follicular bud layer is left at the site of elevation of the UDSTS portion of the skin cover. Diagram 9: The release of the reconstructed auricle from the site of the head. Diagram 10: The layer with the follicular buds adjacent to the helical rim is to be excised. Diagram 11: The skin of the temporal and mastoid surfaces is undermined. Diagram 12: The DTF is passed through the skin tunnel and the site of elevation is closed. Diagram 13, 14: C4, C5 costal cartilage harvest. Diagram 15, 16, 17: A simplified illustration of the costal cartilage construct with the modification in the inferior portion of the construct, reversed letter L configuration to increase stability. The cartilage block construct is multi-layered, and the units are fixed with 38-gaude wire sutures. Diagram 18: The cartilage block is fixed to the soft tissue of the posterior surface of 3-D frame and to temporal and mastoid surfaces with 4-0 clear nylon. Diagram 19: The DTF covers the top of exposed helix [the UDSTS portion of the skin cover], the posterior surface of the reconstructed auricle, the cartilage block and the temporal and mastoid surfaces. Diagram 20: Skin suture line. Diagram 21: The skin of the temporal and mastoid surfaces is approximated and excessive skin is excised in a triangular configuration in the hair bearing skin to avoid dog ear configuration. Diagram 22: The exposed surface is covered with the UDSTS. Diagram 23: The tie-over is performed to keep the UDSTS in contact to the DTF. Diagram 24: Restone foam sponge is cut out to the reconstructed auricle to provide protection. Diagram 25: The illustrated appearance of the patient after the second stage operation.
